Product Details
Updating

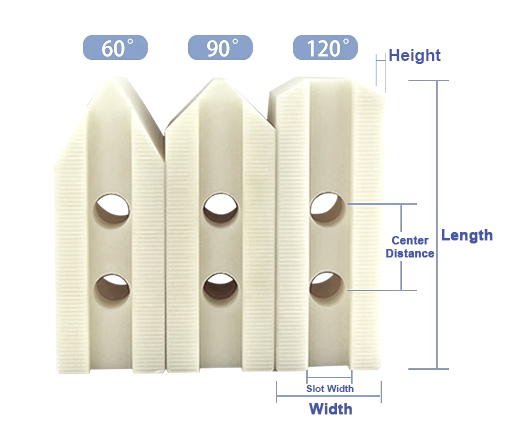

Product Size
Product Parameters
| Model | Length | Width | Height | Slot Width | Screw Hole Center Distance | Tooth Pitch |
| 4 Inch | 49.5 | 23 | 23 | 10 | 14 | 1.5*60° |
| 5 Inch | 62 | 25 | 30 | 10 | 14 | 1.5*60° |
| 6 Inch | 73 | 31 | 36 | 12 | 20 | 1.5*60° |
| 8 Inch | 95 | 35 | 37 | 14 | 25 | 1.5*60° |
| 10 Inch | 110 | 40 | 42 | 16 | 30 | 1.5*60° |
| 12 Inch through-hole | 130 | 50 | 50 | 21 | 30 | 1.5*60° |
| 12 Inch solid | 130 | 50 | 50 | 18 | 30 | 1.5*60° |
| 15 Inch through-hole | 165 | 62 | 62 | 22 | 43 | 1.5*60° |
| 15 Inch solid | 165 | 62 | 62 | 25.5 | 43 | 1.5*60° |
| 21/24 Inch | 180 | 65 | 70 | 25 | 60 | 3.0*60° |
-
